	Glucometer

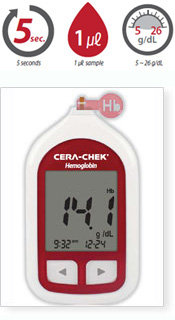

Glucometer

is the most convenient and cost-effective way
to test hemoglobin levels in the blood.

Lab.-quality accuracy and precision with
new electrochemical biosensor technology.

•  Immediate Testing: 5 seconds
•  Small Blood Sample: only 1 µℓ
•  High Precision: Total CV ≤ 3%
•  Wide Measurement Range: 5 ~ 26 g/dL

Performance
•  Wide measurement range of 5~26g/dl with hematocrit
   range of 10 ~ 70%
•  Total Precision CV ≤ 3%
•  Calibrated to hematology analyzers

Convenience

•  1 µℓ sample volume
•  Results in 5 seconds
•  Big strip prevents infection from blood contamination
•  Sip-in blood absorption
•  Indicating LED light guides to easy operartion
•  For both capillary and venous blood
•  24 months shelf-lifetime under room temperature storage
•  (optional) individual foil-wrapping
•  1 coin battery

Accuracy and Precision

Within run precision test (Sample: Whole blood, N = 80)
Testing for 20 replicateson each of 4 meters

Whole blood	Mean (g/dl)	*SD (g/dl)	**CV(%)
9.8 (g/dl) 14.5 (g/dl) 17.9 (g/dl)	9.5 14.1 17.4	0.28 0.41 0.51	2.9 3.0 2.9
Total precision test (Sample: Control solution, N = 80) Testing with 4 meters over 20 days using 2 levels of a control solution
Control solution	Mean (g/dl)	*SD (g/dl)	**CV(%)
Low control normal control	9.3 14.4	0.26 0.43	2.8 3.0

*SD=Standard Deviation **CV=Coeffiecient of variation

Specifications

Features	Technical Specifications
Model No.	HG 400
Methodology	Electrochemistry
Measurement Time	5 seconds
Blood sample Volume	1µℓ
Sample Type	Capillary and venous blood
Mesurement Range	5 ~ 26 g/dL(3.1 ~ 16.1mmol)
Memory	Toal 1,000(HB: 500+Glc: 500)
LED indicator	Indication LED lighting
PC Interface	RS-232C
Calibration	Code-key
Operating Conditions	4 ~ 40 ºC, < RH 85 %
Storage Conditions	Meter: 0 ~ 50 ºC Strip: 1 ~ 32 ºC
Battery	CR-2032 (1 Coin battery)
Battery Life	3,000 Tests(with LED lighting: 1,000 tests)
Meter Dimension (W x L x T)	58mm x 101.5mm x 12.5mm
Weight	40 g (with battery)

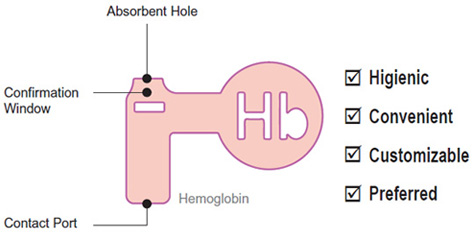

Big Strip, Easy Grip

CERA-CHECK 1 Code (Model: G 400)

Strip is inter-changeable for Blood Glucose testing.

* For Blood Glucose testing, CERA-CHECK 1 Code (Model: G 400) strip can be used.
