Centrifuges
Lab Plastic Ware
Centrifuges
Compact Cooling Centrifuges / Micro Centrifuges Compact Cooling Centrifuges / Micro Centrifuges

These newly developed compact bench top Cooling Centrifuges models MW-8 Plus and MW-12 Plus offers quiet operation with very small footprint.

Centrifuge model MW-8 Plus is suitable for routine sample analysis in Medical, Hospital, Pathology and Institutional laboratories. With a wide choice of rotor heads and adaptors, this unit is truly versatile.

Micro Centrifuge model MW-12 Plus is useful for routine applications in bio-technology, PCR, life sciences, bio-chemical and clinical labs etc. This unit is ideal for centrifugation with micro tubes from 0.2 ml upto 1.5 ml.

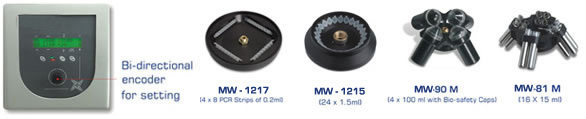

Compact Cooling Centrifuges / Micro Centrifuges MW - 1217 MW - 1215 R-90 M R-81 M

Performance
•  Stable speed output
•  High Capacity (MW-8 Plus)
•  High Speed (MW-12 Plus)
•  Wide variety of rotors & reduction adaptors
•  Precise temperature control up to – 20°C
•  Pre-cooling feature
•  Fast spin feature
•  Calibration window on lid for speed (rpm)

Leading Technology
•  Brushless Induction motor with frequency drive     ensures gentle start
•  Microprocessor based unit with alpha numeric LCD     display
•  Self-diagnosis of errors
•  Parameters setting through easy to use     bi- directional encoder
•  Inverter fault detection with auto shutdown
•  CFC free refrigeration system

User Friendly
•  24 programme memory
•  3 Accelerations, 4 Deceleration profiles
•  Choice of rpm / rcf setting & display
•  Operating panel with feather touch keys
•  Digital countdown timer 0-99 minutes & continuous     run
•  Last set parameters recall (Useful for repetitive     analysis)
•  Automatic door opening
•  Log of cumulative centrifuge run time

Safety
•  Automatic Rotor identification
•  Safety lid interlock to prevent lid opening during     centrifugation
•  Imbalance detection & centrifugation stop with     display of error
•  Motor overload protection
•  Gas hinge to prevent falling of door
•  Emergency lid lock release
Technical Data
MW - 8 Plus MW - 12 Plus
Max. Speed (rpm) 6000 16000
Max. RCF (g) 5070 16600
Max. Tube Size (ml) 100 5
Max. Capacity (ml) 400 40
Min. Temperature (°C) -20 -20
Dimensions WxDxH (mm) 480 x 585 x 530
Supply: 220-240 Volts 50 Hz single Phase
Angle Rotors for MW-12 Plus
Models Capacity Type of Container MAX. RPM MAX. RCF
MW-1214 M 10 x 2ml Polycarbonate Tubes 16000 16600
MW-1215 M 24 x 1.5ml Polycarbonate Tubes 11850 12175
MW-1216 M 8 x 5ml Polycarbonate Tubes 11850 13500
MW-1217 M 4 x 8 PCR Strips of 0.2ml Polypropylene Tubes 12000 11910
Rotors for MW-8 Plus
Models Capacity Type of Container MAX. RPM MAX. RCF
Swing Out Rotors
MW-90 M 4 x 100 ml Glass Tubes with Bio-safety Caps 4000 2500
MW-81 M 16 X 15 ml Glass Tubes 4500 3485
MW-81B M 8 X 15 ml Glass Tubes 4500 3485
MW-82 AM 4 X 50 ml Glass Tubes 4500 3485
Angle Rotors
Models Capacity Type of Container MAX. RPM MAX. RCF
MW-83 M 16 x 15ml Polypropylene tubes 6000 4700
MW-89 M 24 x 15ml Polypropylene tubes 6000 5070
MW-84 M 6 x 50ml Polypropylene tubes 6000 4700
MW-88 M 4 x 100ml Polypropylene tubes 6000 4550
Reduction Adaptors for MW-8 Plus
Models Capacity MW-81 M MW-81 M MW-82 M MW-83 M MW-83 M MW-84 M MW-88 M MW-89 M MW-90 M
MW-151 1 x wintrob
MW-152 1 x 3ml
MW-153 1 x 5ml
MW-154 1 x Bml
MW-155 1 x 4ml
MW-156 1 x Bml
MW-157 1 x 50ml
MW-158 1 x 30ml
MW-160 1 x 15ml
MW-166 3 x 15ml
MW-501 1 x 15 ml
MW-502 1 x 30ml
Suitable for Falcon Tubes (without tubes)
MW-501 F 1 x 15ml
MW-160 F 1 x 15ml
MW-161 F 1 x 50ml
Suitable for Vacutainer Tubes (without tubes)
MW-162 1 x upto 5ml (75 mm long)
MW-163 1 x upto 6ml (100 mm long)
MW-164 1 x upto 10ml (100 mm long)
MW-167 4 x upto 6ml (100 mm long)
MW-168 33 x upto 10ml (100 mm long)
